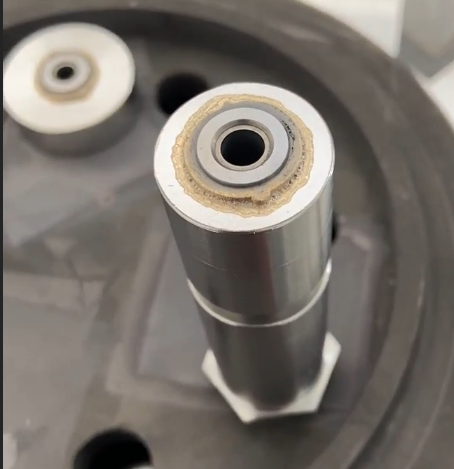

Vacuum Brazing of Mandrels for High-Pressure Rotary Joints Using Tungsten Steel and Stainless Steel

High-pressure rotary joints are essential components in fluid handling systems, enabling the transfer of liquids or gases between stationary and rotating parts. At the core of these systems are mandrels that must withstand extreme pressure, wear, and continuous motion.

To meet these demanding requirements, manufacturers often combine tungsten steel and stainless steel in mandrel construction. Vacuum brazing has become the preferred method for joining these materials, ensuring strong, reliable, and leak-proof assemblies.

Material Combination for High-Performance Mandrels

Tungsten Steel is widely used in wear-critical areas due to its exceptional hardness and resistance to abrasion. It ensures long service life in high-friction environments.

Stainless Steel provides structural integrity, corrosion resistance, and mechanical stability, making it suitable for fluid handling systems operating under pressure.

By combining these materials, mandrels achieve both durability and resistance to harsh operating conditions.

Challenges in Manufacturing Rotary Joint Mandrels

Producing mandrels for high-pressure rotary joints involves several technical challenges.

The dissimilar nature of tungsten steel and stainless steel can lead to:

• Differences in thermal expansion during heating
• Risk of cracking or weak bonding
• Oxidation during high-temperature processing
• Difficulty achieving leak-proof joints

To ensure performance and reliability, a controlled joining method is essential.

Why Vacuum Brazing Is Ideal for Rotary Joint Components

Vacuum brazing provides the necessary environment and process control to overcome these challenges.

The process is carried out in a high-vacuum furnace, eliminating oxygen and contaminants that could affect joint quality. Precise temperature control ensures proper flow of the brazing filler metal and uniform bonding.

Key advantages include:

• Oxidation-free processing
• Strong and uniform metallurgical joints
• Leak-proof bonding for fluid systems
• Reduced thermal stress and distortion
• High repeatability for industrial production

These benefits are critical for components operating under high pressure.

Performance Benefits of Vacuum-Brazed Mandrels

Mandrels produced using vacuum brazing demonstrate superior performance in demanding applications.

These include:

• High resistance to wear and abrasion
• Reliable sealing under high pressure
• Stable performance under continuous rotation
• Extended service life with minimal maintenance
• Consistent dimensional accuracy

Such characteristics are essential for ensuring the efficiency and safety of rotary joint systems.

Applications in Indian Industrial Sectors

In India, high-pressure rotary joints are widely used in industries such as:

• Oil and gas processing
• Heavy machinery manufacturing
• Steel and metal processing
• Chemical processing plants
• Industrial automation systems

As these industries expand, the demand for high-performance mandrels and reliable joining technologies continues to grow.

Normantherm Vacuum Brazing Solutions

At Normantherm, advanced vacuum brazing furnaces are designed to meet the requirements of complex industrial components such as rotary joint mandrels.

Our systems provide:

• High-vacuum environments for contamination-free processing
• Precise temperature control and uniform heating
• Reliable joining of dissimilar materials
• Consistent production quality for industrial applications

These capabilities help manufacturers achieve durable, high-performance components.

Conclusion

Vacuum brazing of tungsten steel and stainless steel mandrels is essential for producing reliable high-pressure rotary joint components. By ensuring strong, leak-proof joints and maintaining material performance, vacuum brazing supports the demanding requirements of fluid handling systems.

With advanced furnace technology and proven expertise, Normantherm continues to deliver dependable solutions for precision industrial manufacturing.
